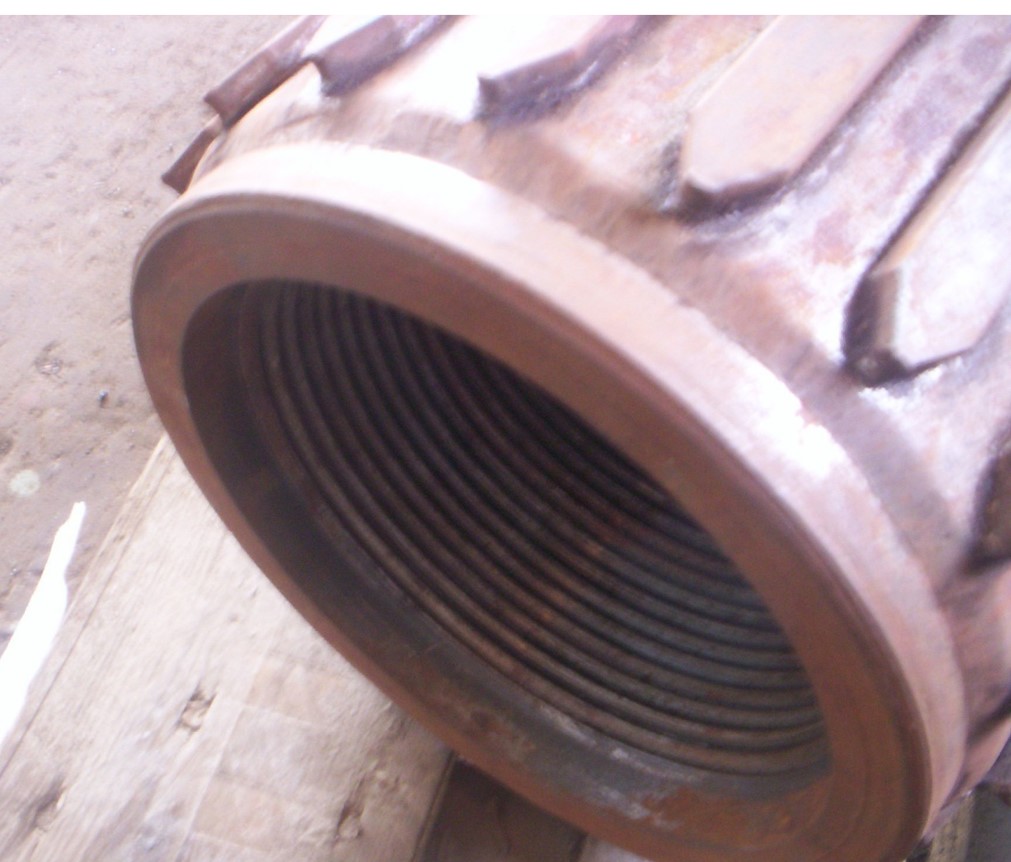

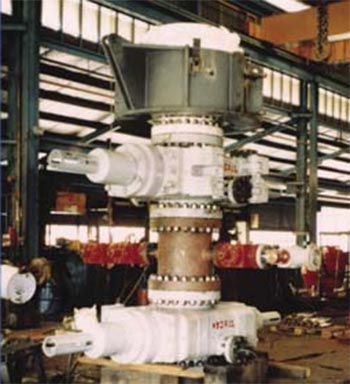

Complete servicing and reconditioning of all types of BOPs i.e. Ram BOP, Annular BOP, I-BOP' The scope includes repair of API ring grooves with SS inlay, re-building of piston, body, cover, stress relieving with chart recorder and complete NDT tests are carried out during the reconditioning process. Assembly of BOPs with new seals of existing design and profile from Indigenous / OEM Make. Testing and approval by OEM / third party inspection like ABS, BV, GL etc.

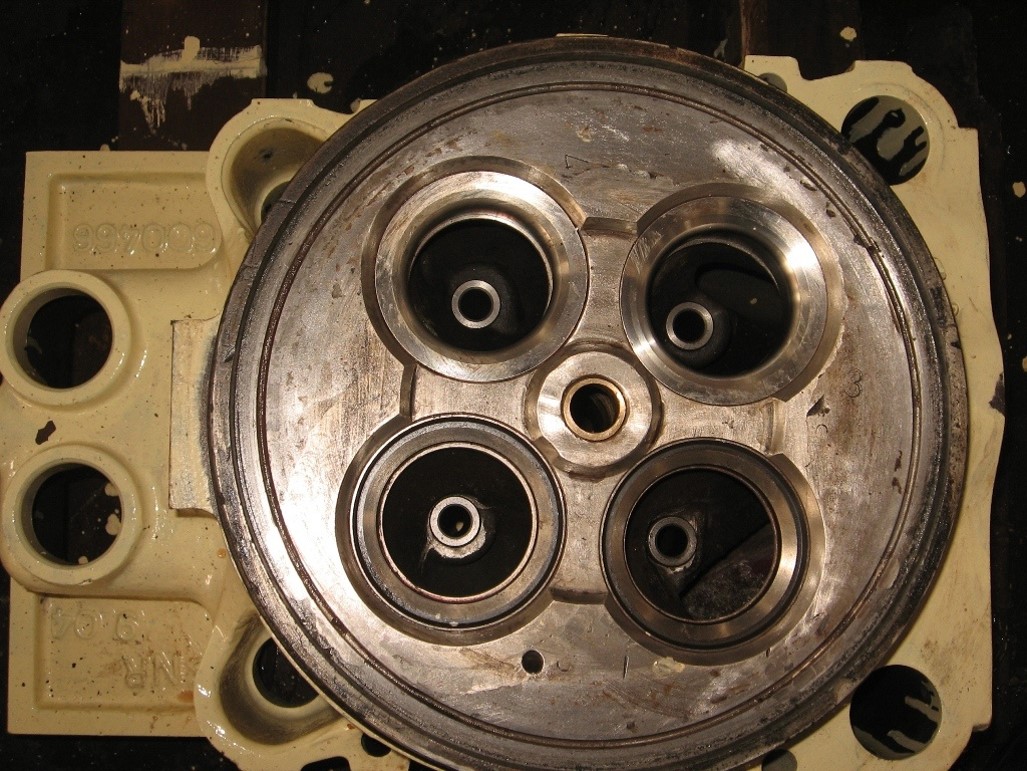

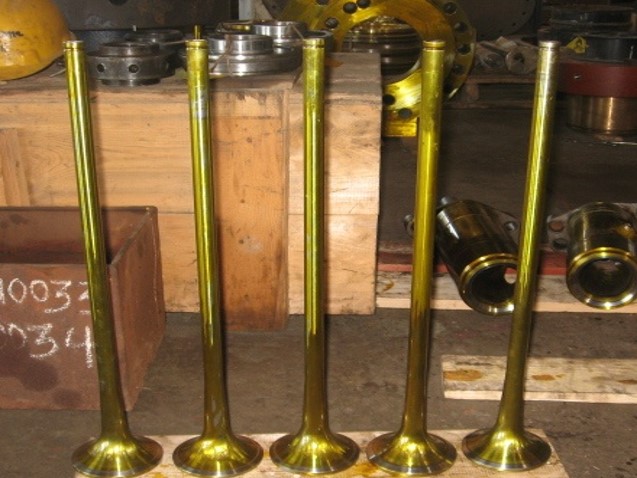

United Van Der Horst has successfully combined specialized welding technology and hard chrome plating technology for the complete reconditioning of damaged or worn out components of diesel engines such as a) Crankshafts b) Liners c) Cylinder Heads d) Exhaust Valves e) Connecting Rods f) Pistons g) Engine Blocks (Crank cases). Hard chrome plating of ring grooves of piston crown for better sealing and wear resistance, porous chrome of engine liners for improved lubrication, satellite inlay on seating face of valve seat and valve spindle for wear resistance, straightening of crankshaft and maintaining the bearing diameters to its original dimensions by hard chrome plating. Since the past 2 decades United Van Der Horst has served the Oil Field Industries with compete satisfaction. Our API certification has been a source of inspiration for continued improvement and up gradation. The entire procedure are approved by classification societies like IRS, DNV, BV, Lloyds.

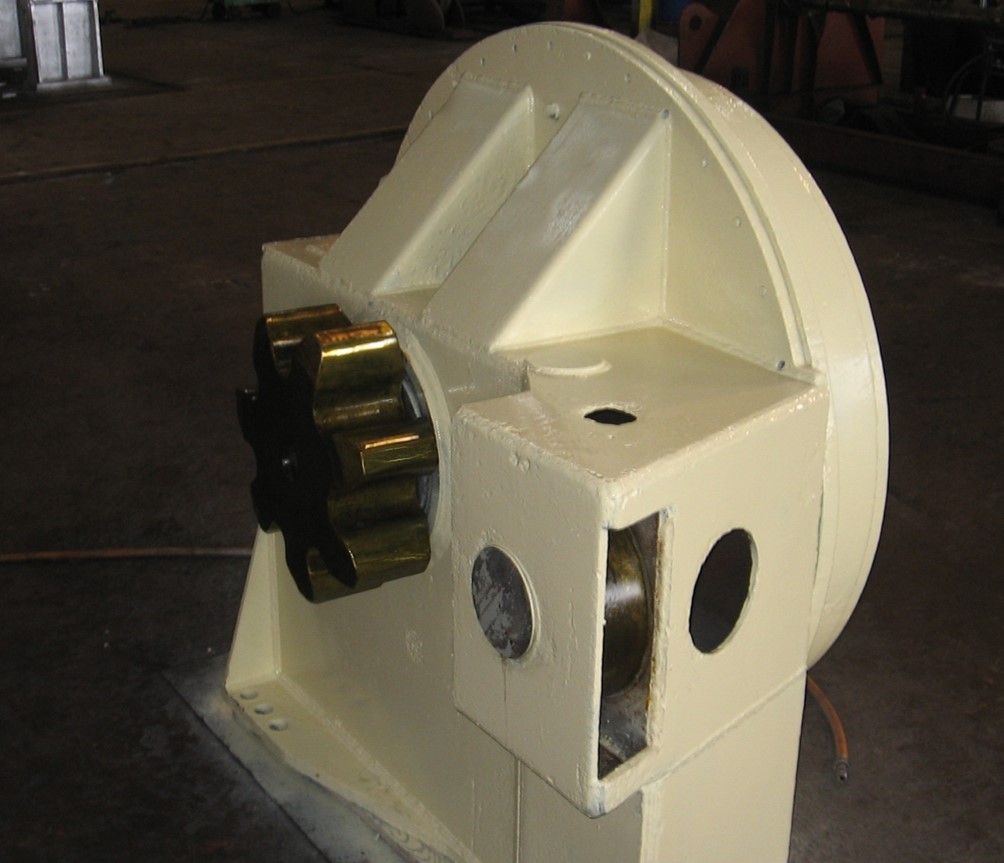

Repair include dismantling of gear box from RIG, replacement of damaged roller bearings, Modification of Oil seal, Repair of damaged base plate, Installation of gear box back in to Rig.

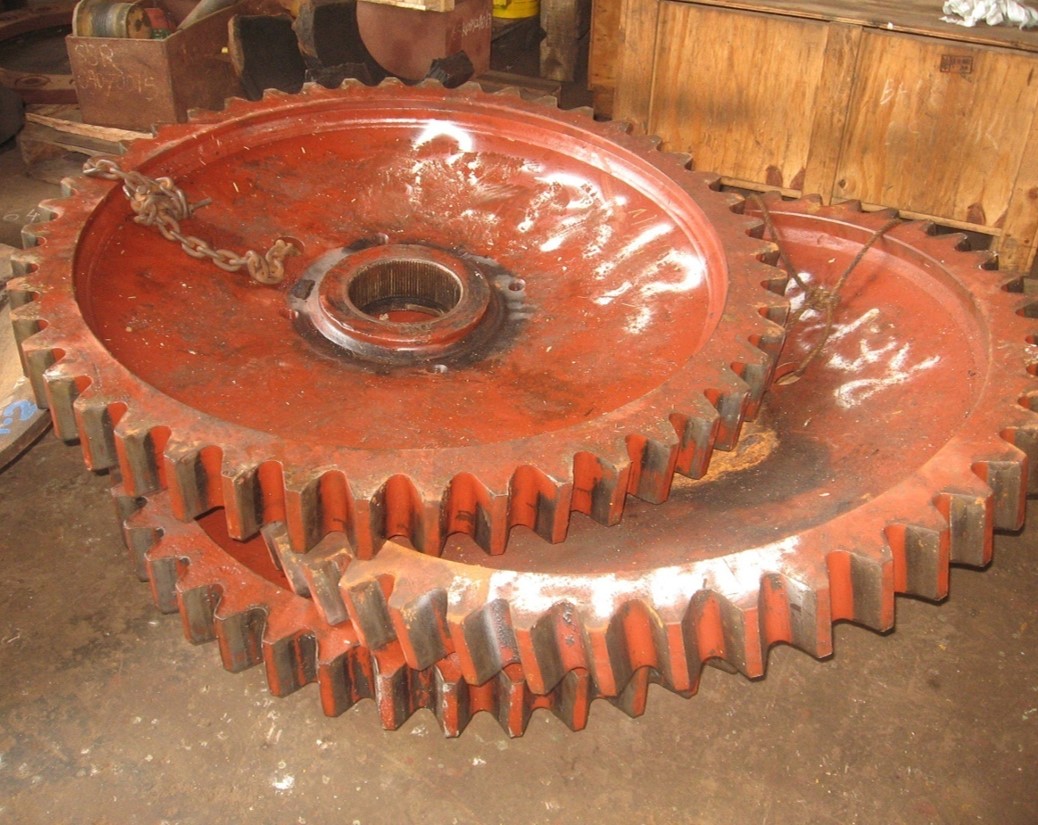

The procedure includes testing of material, weld build up of broken teeth with compatible electrodes, profile matching of teeth. The shaft diameters and the bearing and the sealing areas are re-built back to standard diameter by the hard chrome plating and grinding process. Modifiedor OEM Rotary Shaft Seals with latest technology and with different sealing profiles are available.

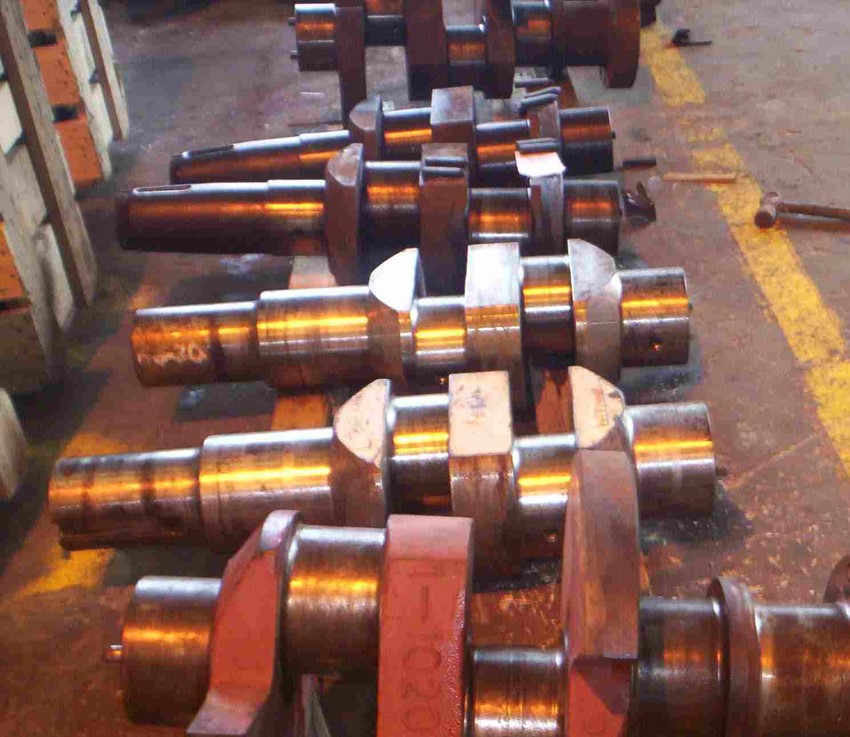

Re-conditioning of crank shaft up to 10 meters long with a swing over a diameter of 1.2 meters. Repairing of crankpins and main Journals by juxtaposing the grinding process. Services for crank-shaft also includes straightening of crankshaft by peening method, full dimensional inspection in addition with magnaflux crack detection. The entire procedure are approved by classification societies like IRS, DNV, BV, Lloyds. Inspection of final product is witnessed and certified by the respective classification society.

Dismantling of I-Bop with specially designed fixture, replacement of damaged ball valve parts & seals, Re-assembling & testing at required pressure.

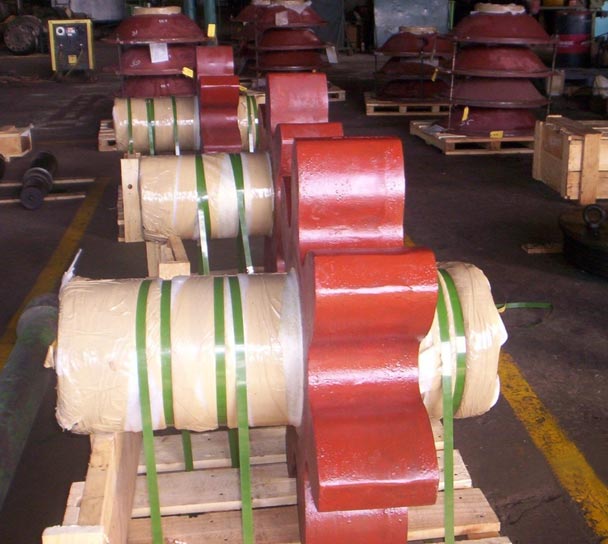

Pinion is a part of Rack -Pinion system of Mechanical Jack -Up rig, repair includes machining out the damaged bearing diameter on both NDE (non drive end) & DE (drive end) Weld build up with compatible weld electrode, Stress relieving, Finish machining & grinding of bearing diameters to maintain the tolerance as per requirement. All inspections are carried out under ABS supervision.

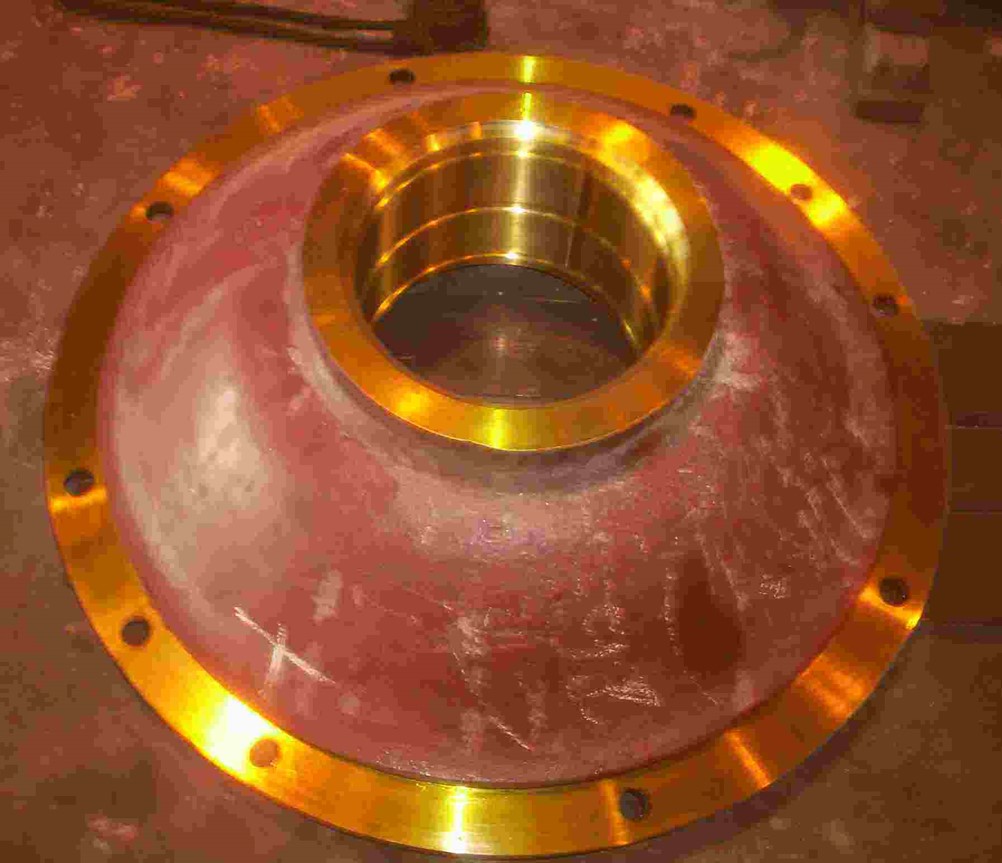

Hubs are part of Rack -Pinion system of Mechanical Jack -Up rig, repair includes machining out the damaged bearing diameter on both NDE (non drive end ) & DE (drive end) Weld build up with ABS -Huston (USA) approved Aluminum -Bronze Cladding on bearing diameters. Finish machining & Honing of bearing diameters to maintain the tolerance as per requirement. All inspections are carried out under ABS super vision.

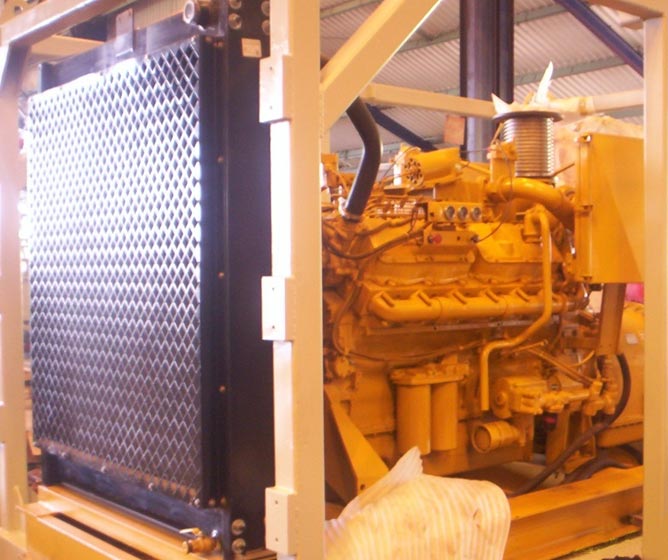

Facilities for overhauling of various types of compressors like HVAC, HP, Gas compressors etc. Both in plat and at site options are available. Modified or OEM seals with latest technology and sealing profiles are available.

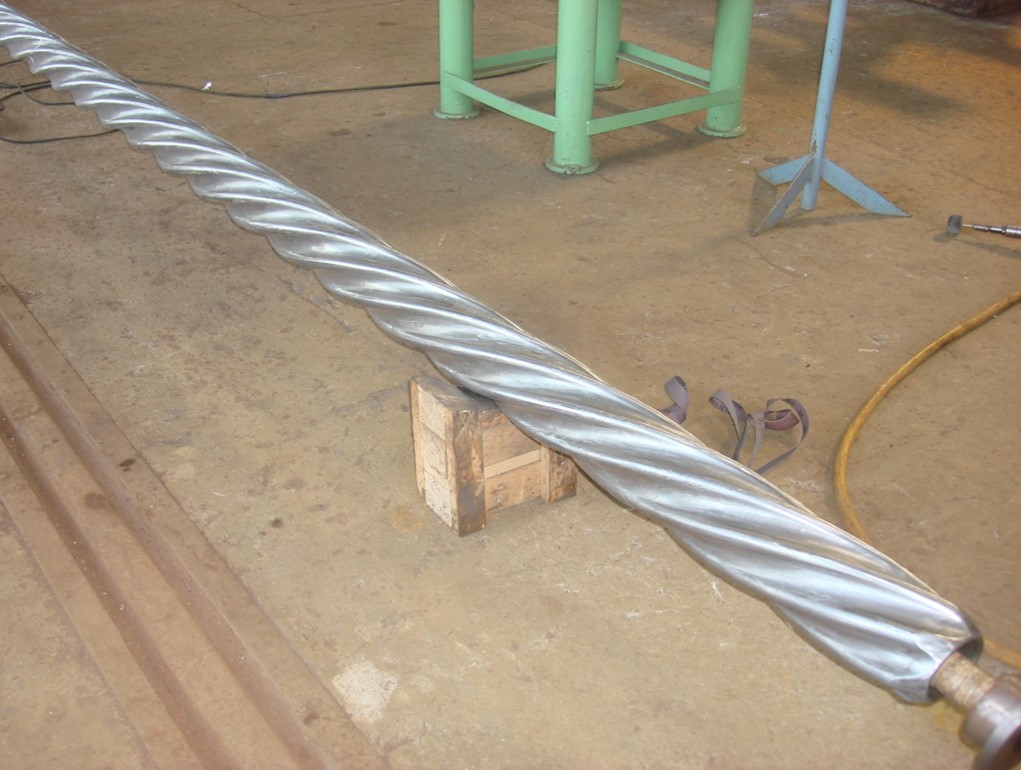

Rotor Shaft is a life line of oil drilling rigs which provides rotating power to the drilling Head /tool. Repair scope includes hard chrome plating of helical flutes which provides wear resistance surface. Surface hardness of chrome plated surface shall be minimum 65 Hrc & Surface finish value less than Ra 0.3 microns. Deep dents marks / Pitting marks shall be locally repaired before hard chrome plating.

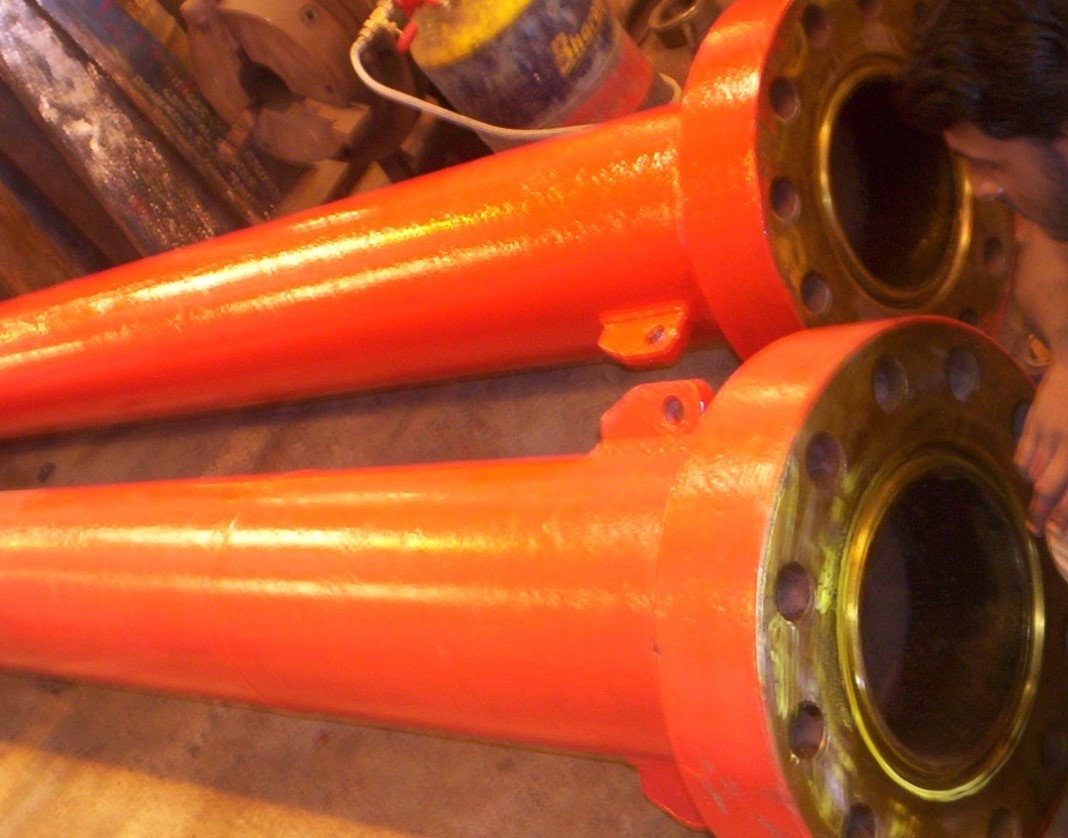

Repair of pipe bore by welding, machining of flange faces, repair of '0' ring grooves, repair of centralizer grooves, pressure testing up to 21,000 PSI and preservative coating.

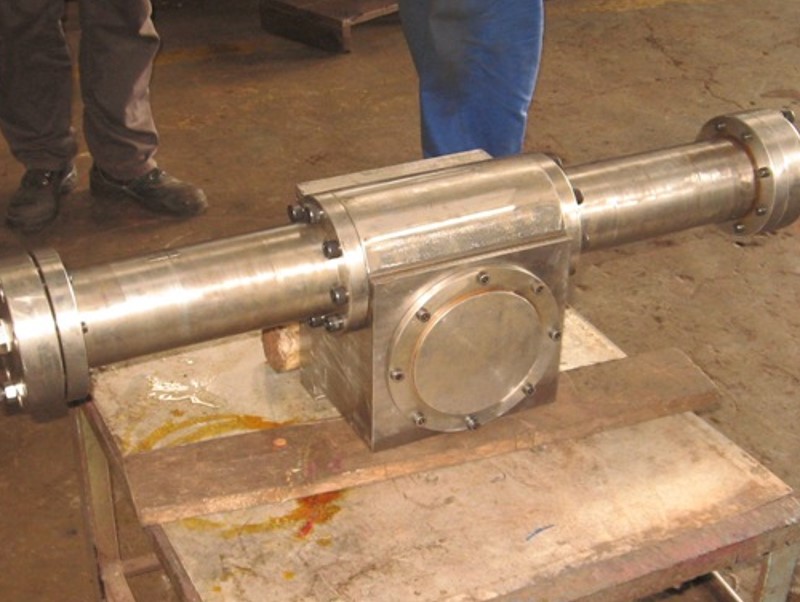

Actuators are manufactured / reconditioned, inspected and tested in accordance with "ISO 10100:2001 : Hydraulic fluid power-Actuators-Acceptance tests". Please refer to our hydraulic cylinder catalog for details complete solution including custom made new actuators and reconditioning of worn out or damaged actuators. Modified seals with latest technology and with modified sealing profiles are available. The actuators are coated with special anti-corrosive epoxy paints or suitable surface treatments is carried out based on environment of service.

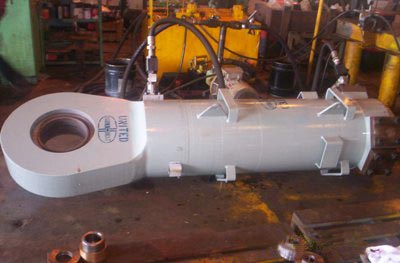

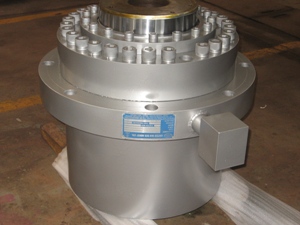

Cylinders are manufactured / reconditioned, inspected and tested in accordance with "ISO 10100 : 2001 : Hydraulic fluid power-Cylinders-Acceptance tests". Please refer to our Hydraulic Cylinder Catalog for details. We can manufacture / reconditioned cylinders for oil field application like Jacking, Wedging, Skidding, Cantilever, Gimble cylinders etc. Modified or OEM seals with latest technology and with modified sealing profiles are available. Special fittings tools can also be supplied to prevent damage to the seals while installation and for ease of fitment. The cylinders are coated with special anti-corrosive epoxy paints or suitable surface treatments is carried out based on environment of service.

Renewal of joints, repair of ring grooves as per API procedure by pre-machining, welding of SS buffer lay, SS inlay, stress reliving, finish machining, DP tests and pressure testing up to 21,000 PSI.

Repair / renewal of structures, railings, valves etc and pressure testing of gas, water and oil lines.

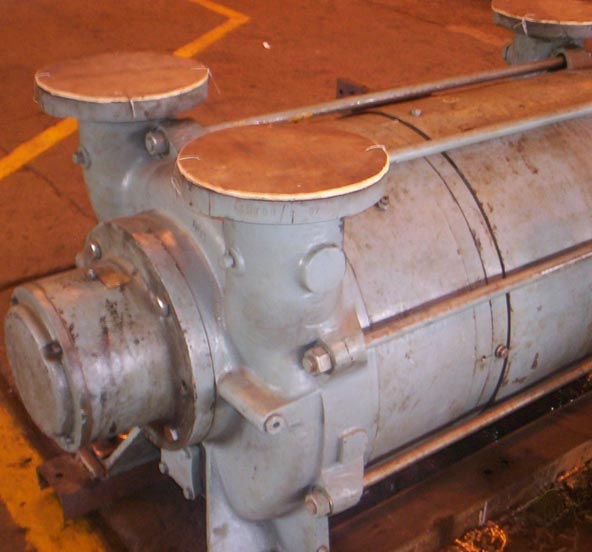

Overhauling of various pumps like glycol recalculating pumps, condensate coil pump, fire water pump, booster pumps, lube oil pumps, vacuum pumps, etc. Modified or OEM seals with latest technology and with different sealing profiles are available.

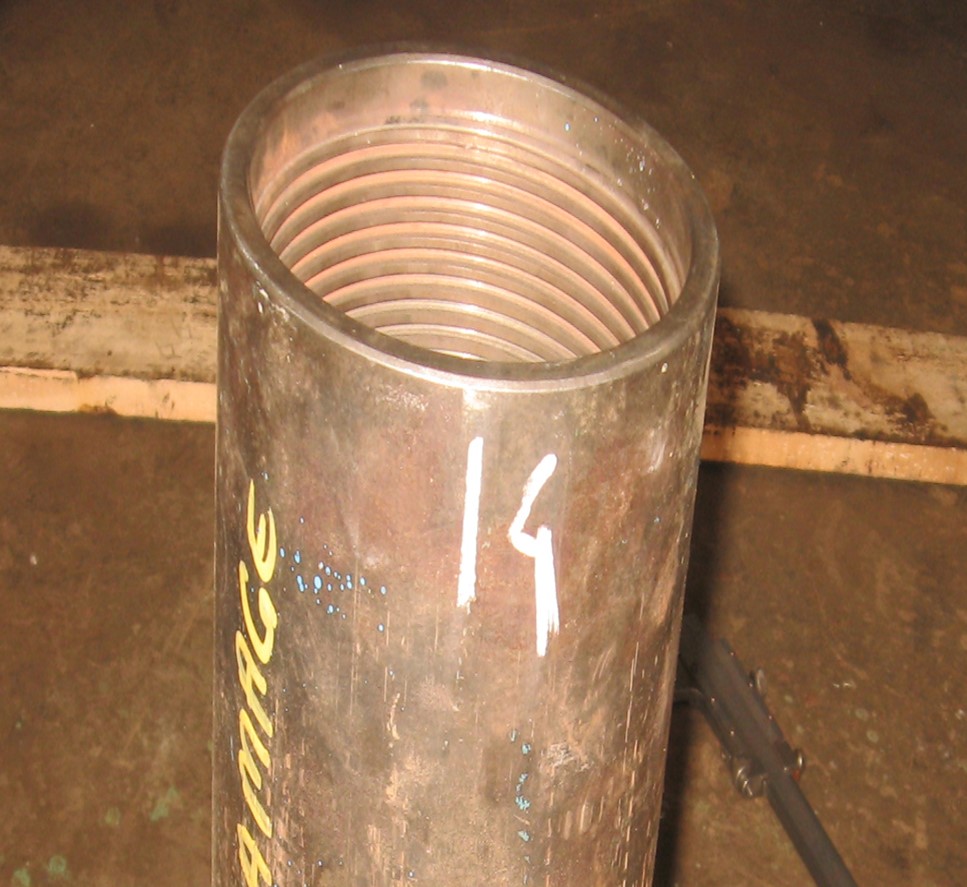

Repair includes pre honing of sealing diameter. UT check on whole body, Hardness check & Hard chrome plating to achieve the required size.

Repairing of gates, seats, seats pockets, mono block body, threaded holes, renewal of sealing elements and pressure testing up to 21,000 PSI. Modified or OEM seals with latest technology and with different sealing profiles are available.

Repair of cylinders, rods, gears, replacement of seals and other fitments, pressure testing, etc as per OEM requirements. Modified or OEM seals with latest technology and sealing profiles are available.

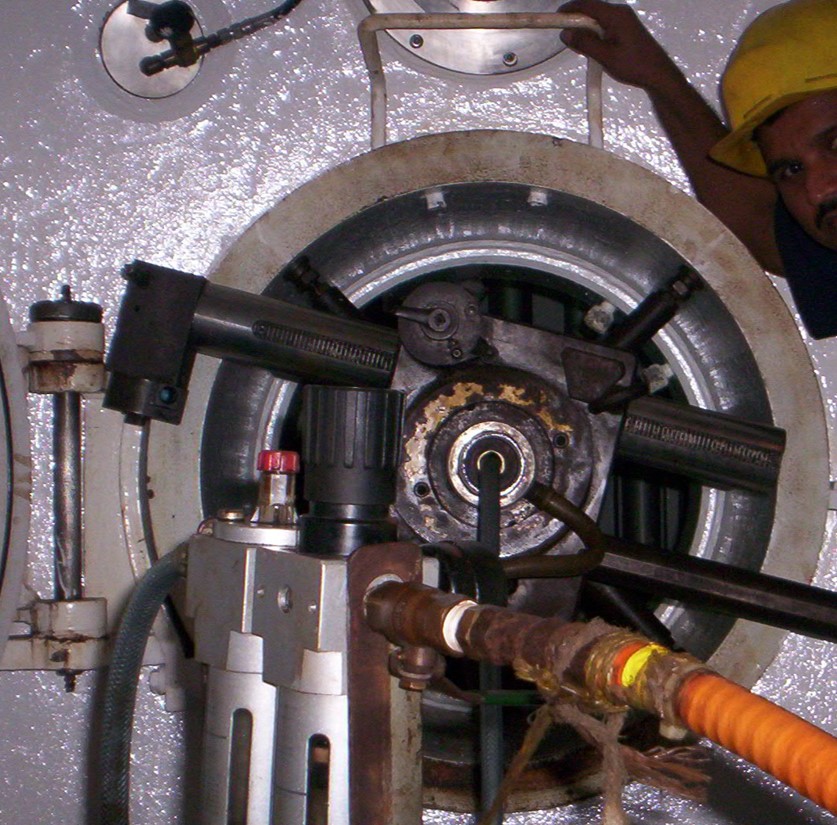

In situ machining and welding-of flanges, hatches, man holes etc. overhauling of compressors, engines etc. dismantling and erection of equipments.
